Description
Core Advantages
Precise, compact, and intelligent — meeting the needs of every
application scenario
12-bit Hardware Resolution:
Details make all the difference—say goodbye to coarse waveforms
filled with quantization noise. The GDS-2000HD/HG features a newly
designed 12-bit analog-to-digital converter (ADC), delivering 4096
levels of vertical quantization to enhance dynamic range and
waveform clarity.
1.5% Vertical Accuracy:
Faithful Reproduction, No Compromise. With a DC gain accuracy of
1.5%. This ensures that what you see on your screen is exactly
what's happening on the board when performing rigorous power loss
calculations or amplifying weak medical electronic signals.
1 ppm Horizontal Accuracy:
Time base accuracy is the foundation of frequency and phase
analysis. Most competitors offer 5 ppm or 10 ppm accuracy, but the
GDS-2000HD/HG, with its 1 ppm internal clock accuracy, is your most
reliable timing verification solution.
All-in-One Analysis: Simplifying
Complexity for Powerful Debugging
No more paying
extra for essential features. The most commonly used debugging tools
come standard, delivering a true all-in-one measurement experience:
- 50 MHz Arbitrary Waveform Output:
Built-in 28 commonly used waveforms including engineering,
mathematical, medical, and trigonometric functions.
- One-Click Waveform Copying: Directly
and perfectly recreate real-world abnormal waveforms
captured by the oscilloscope using the generator for extreme
stress testing.
- Frequency Response Analysis (Bode
Plot): An essential tool for power supply design
engineers, providing intuitive analysis of the system
stability and phase margins of switching power supplies and
filter circuits.
Features
12-bit
hardware resolution (4096 quantization levels)
- Provides 16× better vertical resolution than
conventional 8-bit oscilloscopes.
- Excellent for observing low-level signals and
minimizing quantization noise.
Bandwidth Options
4 Analog Input Channels
- Suitable for multi-channel debugging and complex system analysis.
Maximum Real-Time Sampling Rate
Deep Memory
- Up to 500 Mpts (model dependent) for capturing long-duration signals while maintaining high sampling resolution.
High Measurement Accuracy
- Vertical Accuracy: ±1.5%
- Time Base Accuracy: ±1 ppm – Ideal for precision power and timing measurements.
Android-Based Smart User Interface
- Large multi-touch display
- Fast, intuitive operation
- Supports screen recording, document viewing, and remote web control.
Advanced Analysis Functions
- FFT spectrum analysis
- Bode Plot (Frequency Response Analysis)
- Power analysis
- Serial bus decoding and triggering
- Comprehensive automatic measurements and math functions.

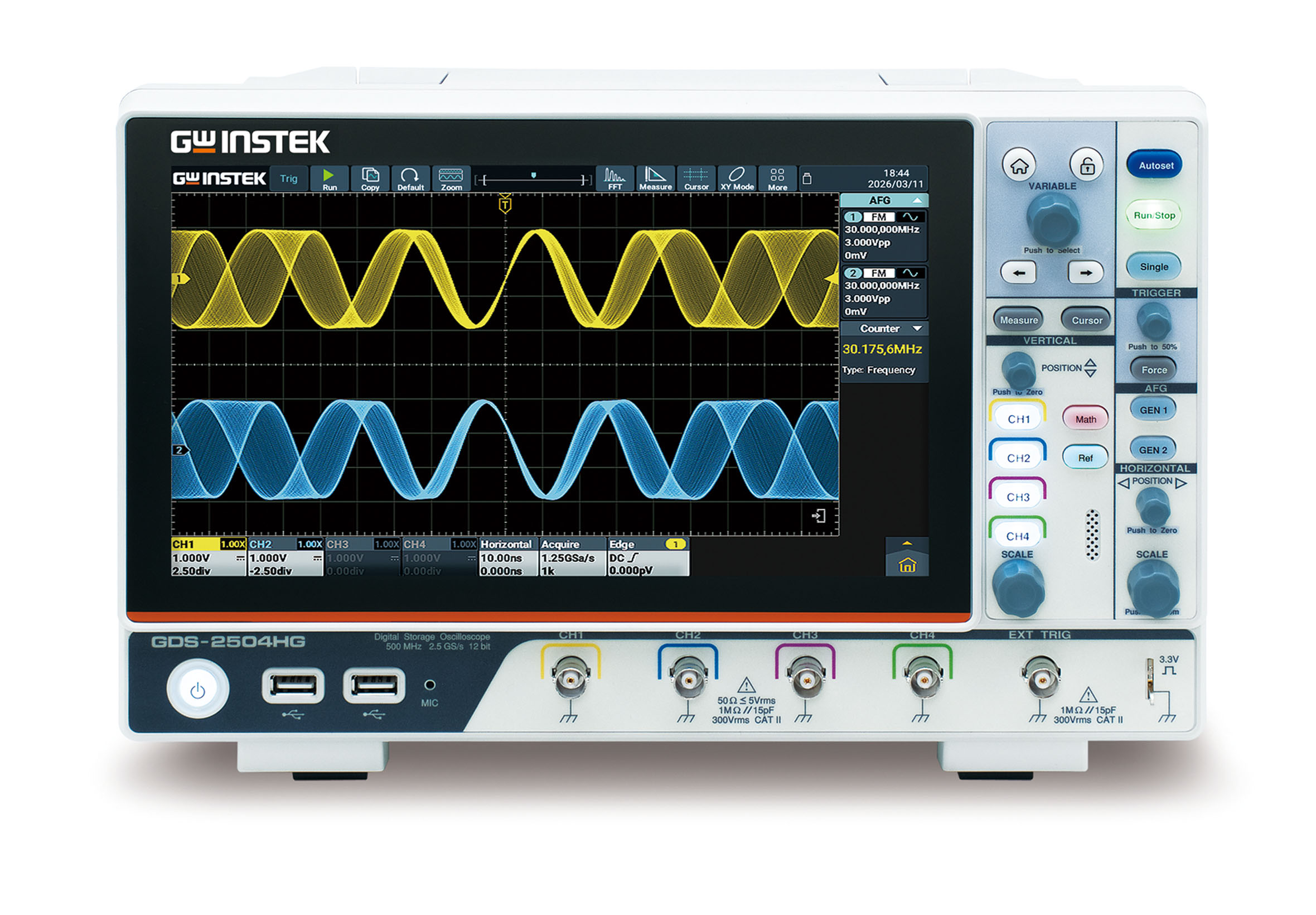

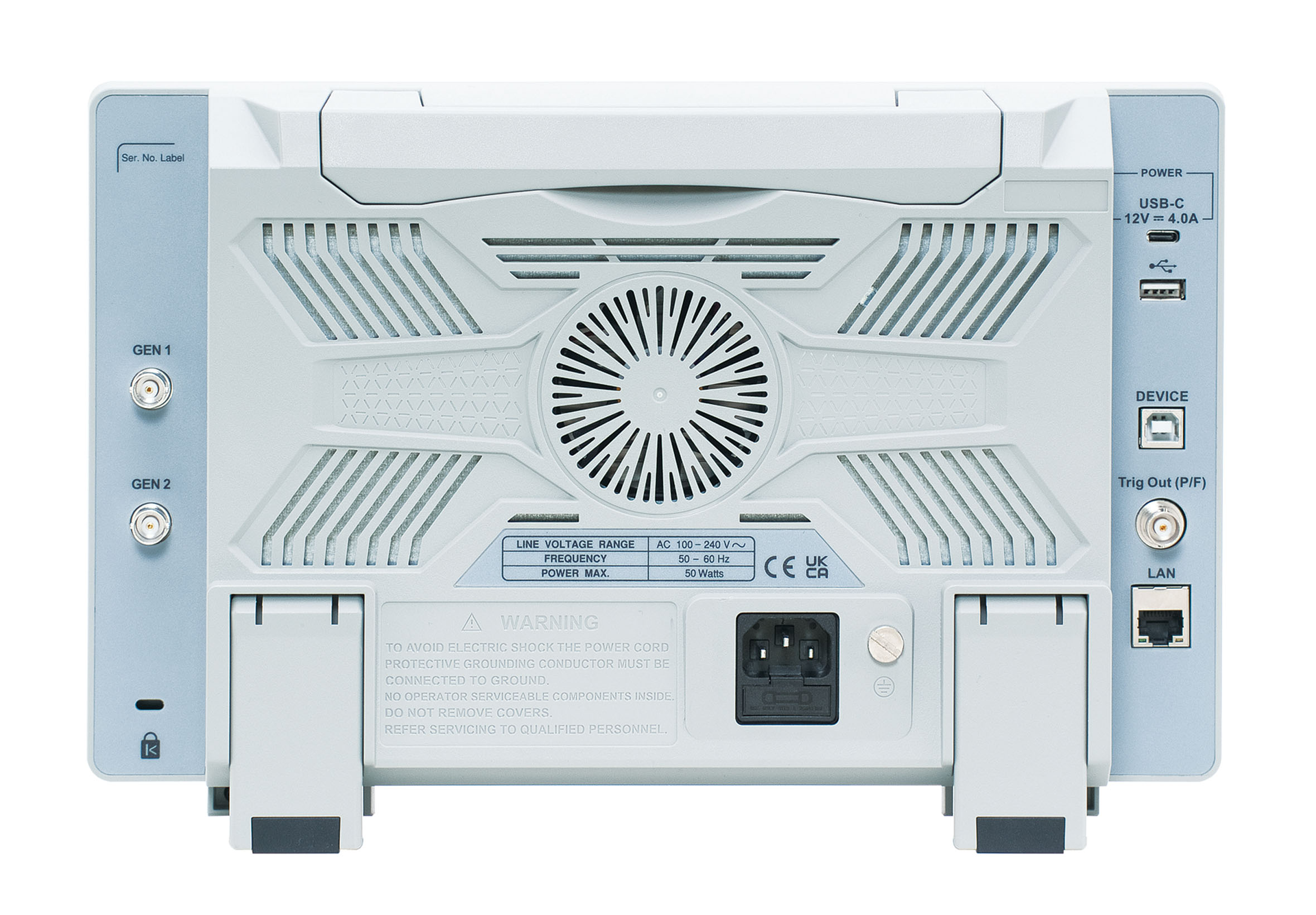

Built-in Arbitrary Function Generator (HG models only)
- 50 MHz output
- 28 built-in standard and arbitrary waveforms

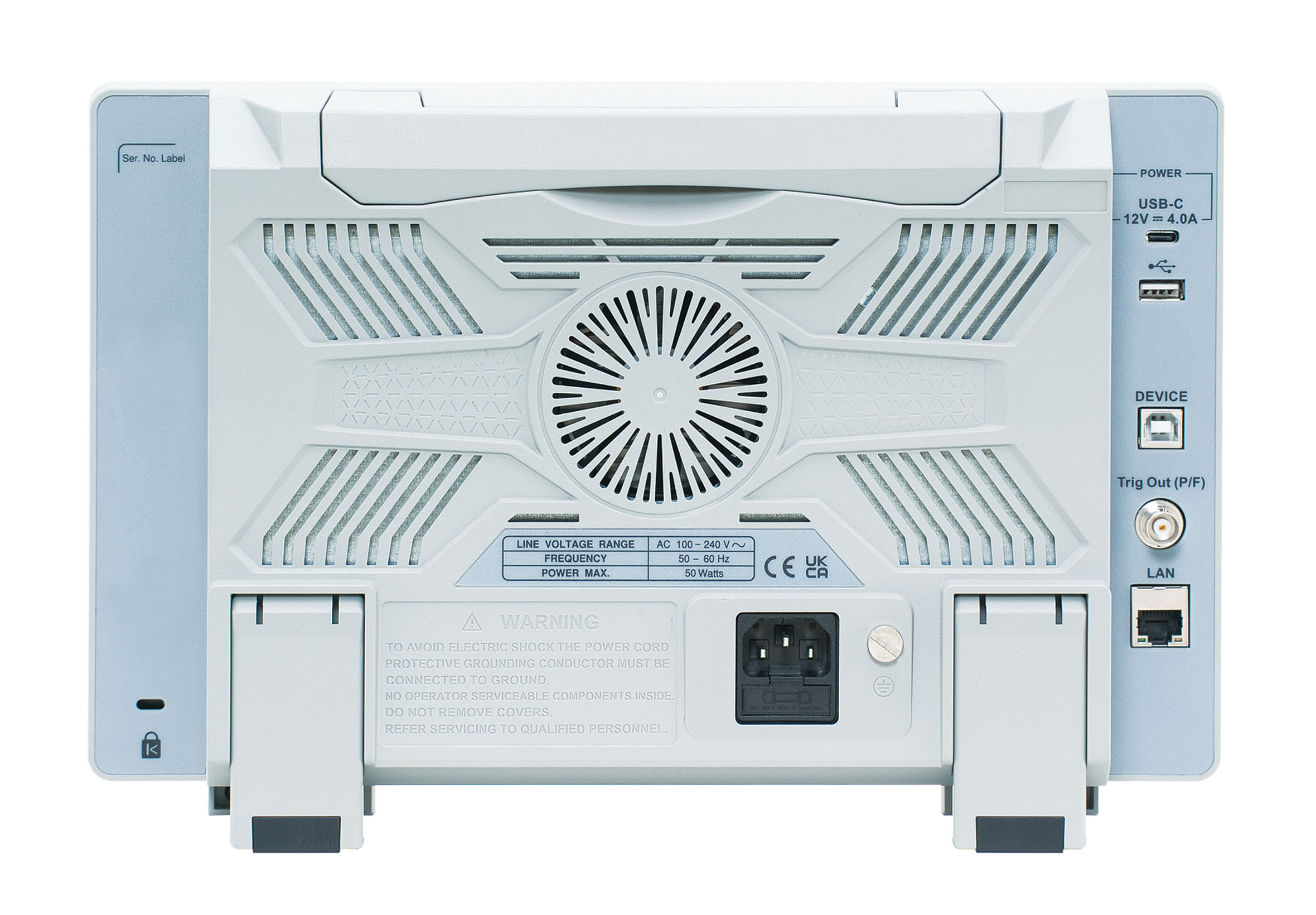

Connectivity
- USB Host
- USB Device
- LAN
- Remote control via PC and web browser.
